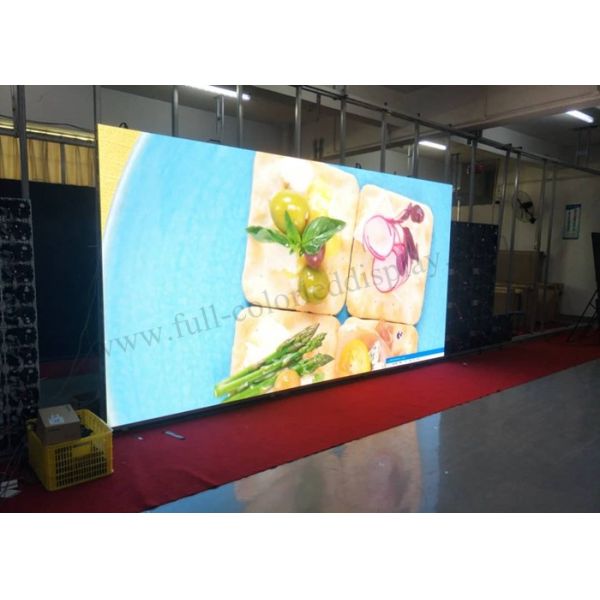

50/60Hz P5 Full Color Outdoor Led Display High Brightness 960*960mm Nation Star

Product Categories

Shenzhen LED World Co.,Ltd

Contact Now

Name: 5060Hz P5 Full Color Outdoor Led Display High Brightness 960960mm Nation Star
Brand: Shenzhen LED World
Price: 1 USD

Brand Name : Shenzhen LED World

Model Number : LW-FO 10

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000 square meters per month

Delivery Time : 10~20 days after receiving the deposit

Packaging Details : Carton/Plywood case etc.

P10 Outdoor full Color LED Screen Specification Pixel pitch 10mm Pixel Configuration 1R1G1B LED com : 5mm

LED component : SMD3535 black

Size of module : 320mm x 160mm

Size of cabinet : 960mmx 960mm /1280mm x 960mm

Material of Cabinet : cold rolled steel

Brightness : 6500cd/m2

Best viewing distance : 5-100M

Driving method : 1/16 scan

Colors : 256 x 256 x 256

Life : 100000 hours

Contact Now

50/60Hz P5 Outdoor High Brightness Led Display 960*960mm Nation Star

P5 Outdoor LED Display features:

With fast locks and connectors easy for assemble and disassemble;
Seamless connection with high flatness and soft image;
Good uniformity true color output;
Frame/Structure free installation on building wall;
Width and height can be added endlessly as for fixed installation;
Excellent quality with low power consumption, High brightness, Long Lifespan and easy to installation.
For outdoor display, super bright, supports any format of video ;

P5 Outdoor LED Display parameter:

P5 outdoor fixed led display
Module Parameter
Pixel pitch	5mm
Pixel Density	40000 pixels/sqm.
LED type	SMD2727
Pixel combination	1R1G1B
Module size	320x160mm
Module resolution	64x32 pixels
Driving mode	1/16 scan
Panel Parameter
Number of modules	2W*4H
Panel size	640x640mm
Panel resolution	128x128
Maintain way	Rear
IP Rating	IP65
Flatness	≤0.1mm
Cabinet material	Die-cast aluminium or Iron
General Parameter
Viewing distance	≥6M
Brightness	≥6500CD/sqm.
Viewing angle	120°/120°
Weight	40kg/sqm.
Max Power consumption	Max. 900W/sqm.
Aver Power consumption	Aver. 360W/sqm.
Frame frequency	≥60HZ
Refresh frequency	≥1920HZ
Working Temperature	-30ºC~50ºC
Working Voltage	AC90~260V±20%,50-60HZ
Greyscale/color	16384x16384x16384
Brightness adjustment	0-255
MTBF	5000 hours
Life	100000 hours
Malfunction dot rate	<0.0001
Control distance	Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system	Novastar / Linsn / Colorlight ( Optional )
Input signal	DVI / HDMI / SDI / VGA / S-video / Composite
Video processor	VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system	BOSE / JBL / PAL / Customized ( Optional )
Installation	Fixed installation / Rental installation ( Optional )
Hanging bar	Optional
Certification	CE / RoHS / ETL / CCC / FCC / BS476
Packing Type	Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

Special service for big projects, such as stadium, exhibitions, squares and so on.
Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover the problem and solve the problem instantly
Provide unique and professional solutions based on customer's requirement;
Spare parts: necessary spare parts are provided together with products to customers;

Why choose us:

Because we have provide 2-year warranty , good after-sale service and timely technical support
Aluminum alloy material both for fixed installation and hanging rental;
Supporting OEM/ODM service, If you have special requirements about the shape and systems, we can make correspond solutions for you;
Your question will be answered within 18 hours ;

Package Details:

50/60Hz P5 Full Color Outdoor Led Display High Brightness 960*960mm Nation Star
