Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Product Categories
Shenzhen LED World Co.,Ltd
Contact Now

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Brand Name : Shenzhen LED World

Model Number : LW-FO8

Certification : CE, ROHS , CCC , FCC

Place of Origin : China

MOQ : 1 square meter

Price : Negotiation

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram,

Supply Ability : 5,000 square meters per month

Delivery Time : 7- 18 working days

Packaging Details : Carton/wooden case/Flight case etc.

Pixel pitch : 8mm

Pixel Density : 15625 pixels/sqm

LED type : SMD3535

Module size : 256x128mm

Module resolution : 32x16 pixels

Driving mode : 1/4 scan

Cabinet material : Die-cast aluminium or Iron

Weight : 40kg/sqm.

Max Power consumption : Max. 800W/sqm.

Aver Power consumption : Aver. 320W/sqm.

Contact Now

P8 Right Angle Outdoor Fixed LED Display 1R1G1B


P8 Angle LED Display Feature :

  • Display broadcasting full-motion picture;
  • High brightness, screen adjusts automatically;
  • Low Power Consumption, Energy Saving;
  • The brightness can be adjustable to meet the need of changing environment;
  • Kinglight LED lamp and Macroblock 5124 made;
  • That is to improve the aesthetic sense, but also make the screen view;


P8 Angle LED Display Parameter :

P8 outdoor fixed led display
Module Parameter
Pixel pitch 8mm
Pixel Density 15625 pixels/sqm.
LED type SMD3535
Pixel combination 1R1G1B
Module size 256x128mm
Module resolution 32x16 pixels
Driving mode 1/4 scan
Panel Parameter
Number of modules 4W*4H
Panel size 1024x1024mm
Panel resolution 128x128
Maintain way Rear
IP Rating IP65
Flatness ≤0.1mm
Cabinet material Die-cast aluminium or Iron
General Parameter
Viewing distance ≥9M
Brightness ≥6000CD/sqm.
Viewing angle 120°/120°
Weight 40kg/sqm.
Max Power consumption Max. 800W/sqm.
Aver Power consumption Aver. 320W/sqm.
Frame frequency ≥60HZ
Refresh frequency ≥1920HZ
Working Temperature -30ºC~50ºC
Working Voltage AC90~260V±20%,50-60HZ
Grey scale/color 16384x16384x16384
Brightness adjustment 0-255
MTBF 5000 hours
Life 100000 hours
Malfunction dot rate <0.0001
Control distance Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system Novastar / Linsn / Colorlight ( Optional )
Input signal DVI / HDMI / SDI / VGA / S-video / Composite
Video processor VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system BOSE / JBL / PAL / Customized ( Optional )
Installation Fixed installation / Rental installation ( Optional )
Hanging bar Optional
Certification CE / RoHS / ETL / CCC / FCC / BS476
Packing Type Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

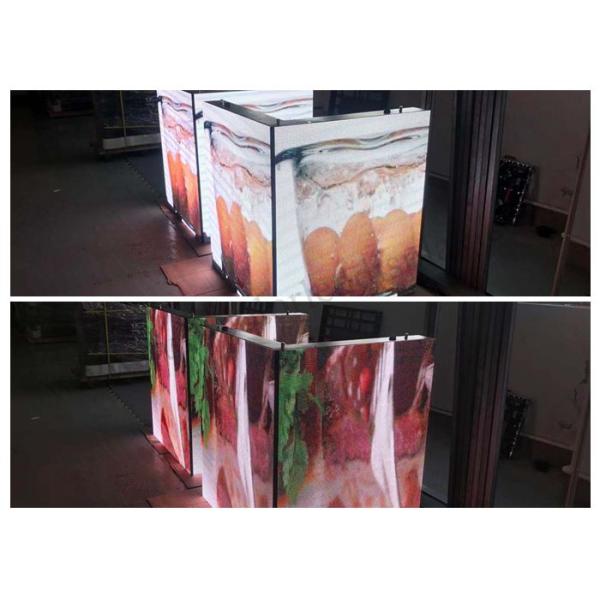

P8 Angle LED Display Details:

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Our Advantage:

  • High degree of protection,high durability;
  • Service advantage: Better service at same situation, better cooperation at same service;
  • ManyYears factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed;
  • Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
  • High contrast rate up to 9000:1 by using black LED;
