P10 Dip Rental And Fixed Outdoor Led Display Screen With 960 X 960 Mm Cabinets

  • 1
  • 2
  • 3

Brand Name : Shenzhen LED World

Model Number : LW-FO 10

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000 square meters per month

Delivery Time : 10~20 days after receiving the deposit

Packaging Details : Carton/Plywood case etc.

LED Encapsulation : DIP

Lifespan : 100000hours

Cabinet Weight : 25KG

View Angle(V) : 140°

Brightness : ≥8000nits

Brightness Adjustment : Manual/Auto/Programmable

Density : 10,000dot/S.Q.M

Cabinet Material : DIE-CASTING

Contact Now

Outdoor series fixed led display_201905211506521.p...

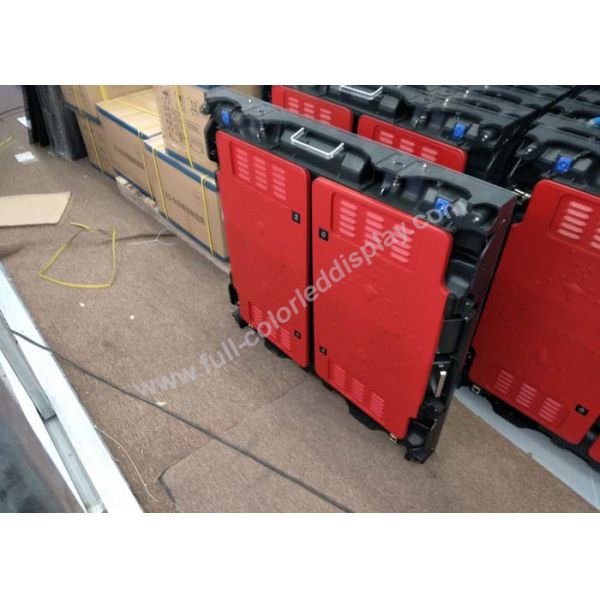

P10 Dip Rental And Fixed Outdoor Led Display Screen With 960 X 960 Mm Cabinets

P10 outdoor rental and fixed LED panel features:

  • Long durability and Hight Reliability；
  • Saving time and labor: once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily;
  • General configuration: branded led lamp chip, branded driving IC;
  • Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously；
  • Thanks to the SMD 3 in 1 technology, the viewing angle is ultra wide and the screen’s surface even flatter;
  • Support different image and video formats.
  • Flash, WAV/MIDI, Videos from TV and other equipments;
  • IP65 waterproof;
  • Perfect for outdoor usage;

Parameter:

Model LW-F 10 Outdoor Fixed LED Display
Pixel pitch 10,12,16,20mm
LED Encapsulation DIP
Pitch Composing DIP
Module Size 320mm*160mm
Module Resolution 16dot*8dot
Cabinet Size 960mm * 960mm *105mm
Cabinet Resolution 48dot*48dot
Cabinet Material Die-casting
Cabinet Weight 25kg
Density 10,000dot/S.Q.M
Brightness ≥8000nits
Brightness Adjustment Auto 256 level
Viewing Distance 15m-300m
View Angle(H) 150°
View Angle(V) 140°
Average Consumption 300W/
Max Consumption 600W/
Brightness Adjustment Manual/Auto/Programmable
Driving Method 1/8 Scan Constant Driving
MTBF 50000hours
Lifespan 100000hours
Frame Frequency 60Hz
Working Temperature -20ºC+50ºC
Humidity Range 10% ~ 90%
Voltage 110 ~ 240V
IP Ranking IP65
Signal Type AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance UTP:100 meters; single-mode fiber: 10 km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection;
Top quality+Reasonable price+Responsible After Service=Successful & Win;
Warranty: 2 years;
Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training;

FQA:

  • May I know the package details?
  • For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.It's safe to protect the screen on the way, also economical;
  • What's the pixel pitch for Outdoor LED Display Screen?
  • Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
  • May I know the Minimum order for your products?
  • For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;

Product detail:

P10 Dip Rental And Fixed Outdoor Led Display Screen With 960 X 960 Mm Cabinets
